RAM MOUNT Componente Ram Mounts RAM-B-125BU con base curva a 45 Gradi per applicazioni nautiche

CODICE PRODOTTO: RAM-B-125BU

TIPO PRODOTTO: Components

SPECIFICHE PRODOTTO
– Product Weight: 0.25 lb
– Hole Pattern: Various AMPS Hole Patterns|See Drawing
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: AMPS 2-Hole

DESCRIZIONE INGLESE

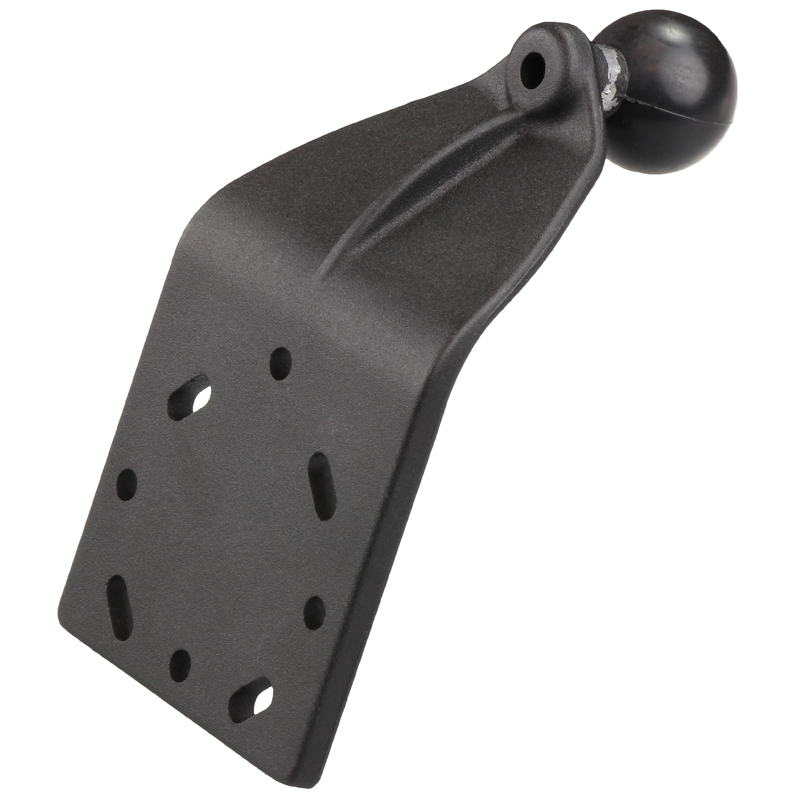

The RAM RAM-B-125BU, curved extension base includes a 1″ rubber ball; it allows for almost infinite adjustment and perfect viewing angles. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications. The mounting section of the plate is 2.5″ square, predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25″ forward, at a 45 degree angle, from the center of the 1″ ball and approximately 1.5” above the 1″ ball (to the bottom of the connection section of the plate).

Tipo Sfera  B – 2.54cm (0.90kg)

Tipo Prodotto  Componente
